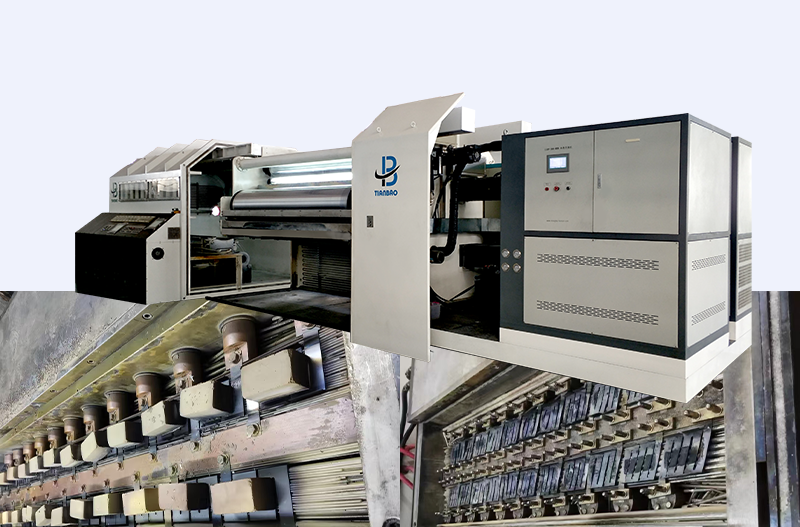

Vacuum Metalizer for Zinc Sulfide film

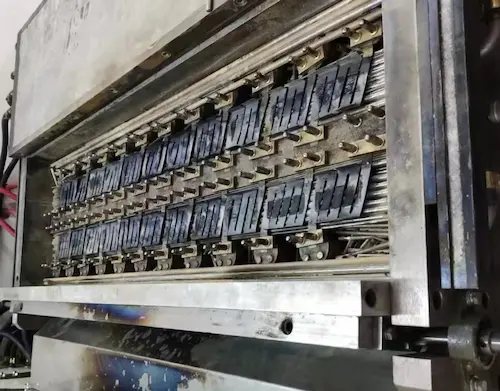

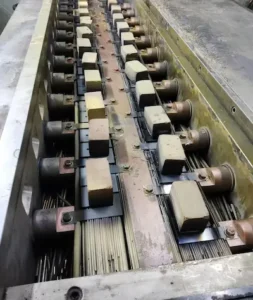

☑ Both evaporation section and wire-feeding section can be moved out from rear of vacuum chamber so achieve high pumping speed, more energy saving and excellent vacuum condition.
☑ The special design of moving evaporation section and wire-feeding section can increase output owing to less leakage in the metallizer and quicker boats change.
☑ The uniformity is excellent and metallic gloss is beautiful owing to the special design.
Products Introduction
Application
This machine is suitable for coating zinc sulfide and other media on the surface of BOPP, PET, CPP, PE, PVC and other materials.
Advantage
Fast cleaning time , High coating speed, Automatic Constant tension controlling , Simple operation, Strong stability, Low maintenance rate.
Features
Maintaining the exact vacuum degree for evaporation of the Zinc Sulfide , smoothly and fast coating , it can help to be deposited the ideal thickness of the Zinc Sulfide on the surface of the film.
Zinc sulfide film has high brightness, good transparency, uniform coating and without color difference as clear as a crystal.
control section
☑ The metallizer features a high quality Siemens PLC paired with a 12″ Siemens color HMI, enabling fully digitized parameter visualization and intuitive human-machine interaction.
☑ Key Advantage: One-touch factory parameter restoration. Protective devices for leakage and high temperature in both booster pump and diffusion pump systems.
Vacuum section
☑ Combining high speed pumping efficiency, excellent vacuum condition, with intelligent automation, the system utilizes high quality cryogenic traps and Siemens PLC technology to maintain optimized performance through continuous monitoring and control under any climate environment.
Model | TB-1000 | TB-1200 | TB-1400 | TB-1600 | TB-1800 | TB-2000 | TB-2400 |
Web width(mm) | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2400 |
Max. unwind dia.(mm) | 700 | ||||||
Boats(pc) | 19 | 23 | 27 | 31 | 35 | 39 | 47 |
Winding peed(m/min) | 400m/min | ||||||
Excellent for materials | 8μm-100μm | ||||||
* Note: The pictures and parameters of machine just for a reference and subject to the actual configuration.
