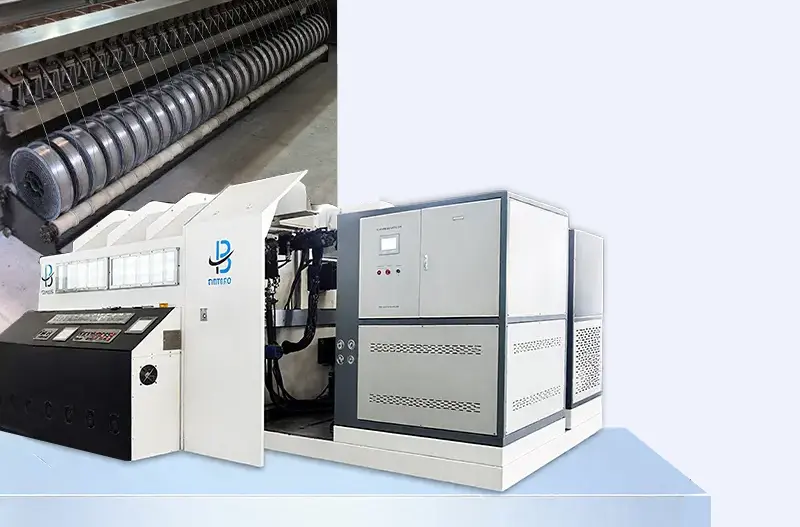

Fully automatic suspension vacuum coating machine (rectangular, round vacuum chamber)
☑ Both evaporation section and wire-feeding section can be moved out from rear of vacuum chamber so achieve high pumping speed, more energy saving and excellent vacuum condition.
☑ The special design of moving evaporation section and wire-feeding section can increase output owing to less leakage in the metallizer and quicker boats change.
☑ The uniformity is excellent and metallic gloss is beautiful owing to the special design.
Products Introduction
Application

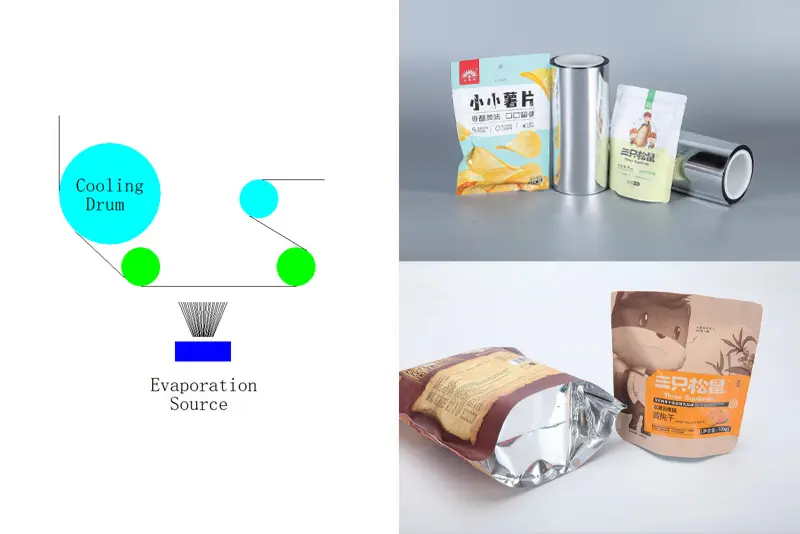

The working principle of the fully automatic vacuum coating machine: Metal aluminum melts at high temperature in a vacuum state, and vaporizes and evaporates to deposit on the surface of the coated material in a molecular atomic state, forming a layer of high-brightness metal aluminum film.
The machine is suitable for metallized various roll materials, such as BOPP, PET, CPP, PE, PVC, twisted PET, nylon film, cigarette pack film, hot stamping transfer film, and various high-end holographic anti-counterfeiting films and other roll films.
Advantage
- The free suspension coating completely solves the problem of empty coating lines for flexible materials. There is no edge cutting, the film is smooth and wrinkle-free, the aluminum layer is uniform without aluminum slag sputtering, and the film is not easy to break;
- Double coating drum cooling is used to improve the brightness of the film and the firmness of the aluminum layer;
- Energy saving improves product quality and work efficiency;
- OD online detection ensures the thickness and uniformity of the aluminum layer;
- The top-tightening evaporation boat saves time when changing boats and improves the evaporation capacity and product quality of the evaporation boat;
- The swing frame can realize automatic distance rewinding according to the roll diameter.
Features
- New evaporation source design: (top clamp, staggered arrangement) improves the evaporation rate of aluminum, makes cleaning easier, increases the speed of replacing the evaporation boat, and saves time.
- The use of double coating drum cooling improves the brightness of the film and the firmness of the aluminum. At the same time, the refrigeration temperature does not need to be too low to cool the aluminum film better; it shortens the working and heating time of the compressor and extends the service life of the equipment,thus achieving the effect of energy saving.
- It adopts the most advanced digital control system in Germany and is driven synchronously by 4 Siemens AC servo motors to achieve constant tension winding.
- System integrates PLC controlled stepper motor single wire feeding system, which can realize single and unified wire feeding modes.
control section
☑ The metallizer features a high quality Siemens PLC paired with a 12″ Siemens color HMI, enabling fully digitized parameter visualization and intuitive human-machine interaction.
☑ Key Advantage: One-touch factory parameter restoration. Protective devices for leakage and high temperature in both booster pump and diffusion pump systems.
Vacuum section
☑ Combining high speed pumping efficiency, excellent vacuum condition, with intelligent automation, the system utilizes high quality cryogenic traps and Siemens PLC technology to maintain optimized performance through continuous monitoring and control under any climate environment.
Model | TB-F1350 | TB-F1650 | TB-F2200 | TB-F2500 | TB-F2700 | TB-F2900 | TB-F3250 |
Web width(mm) | 1400 | 1700 | 2220 | 2580 | 2760 | 2940 | 3300 |
Max. unwind dia.(mm) | 800-1200 | ||||||
Boats(pc) | 16 | 19 | 25 | 29 | 31 | 33 | 37 |
Winding peed(m/min) | 900m/min | ||||||
Ultimate vacuum(Pa) | 5X10-2Pa | ||||||
Working power(Kw) | 180 | 220 | 270 | 350 | 390 | 400 | 440 |
Excellent for materials | 6μm-150μm | ||||||
* Note: The pictures and parameters of machine just for a reference and subject to the actual configuration.
