Aluminum paper vacuum metallized machine
☑ Both evaporation section and wire-feeding section can be moved out from rear of vacuum chamber so achieve high pumping speed, more energy saving and excellent vacuum condition.
☑ The special design of moving evaporation section and wire-feeding section can increase output owing to less leakage in the metallizer and quicker boats change.
☑ The uniformity is excellent and metallic gloss is beautiful owing to the special design.
Products Introduction
Application
This machine is to evaporating coat aluminum on the surface of roll material, which is suitable for high-grade cigarette packaging and wine labels
Features
The new evaporation source design (top clip, staggered arrangement) improves the evaporation rate of aluminum, makes cleaning easier, improves the speed of replacing the evaporation boat, and saves time
It shortens the working time of the compressor, prolongs the service life of the equipment, thus achieves the effect of energy saving.
The system integrates PLC controls stepper motors to accomplish the wire feeding which can realize single and unified wire feeding modes
control section
☑ The metallizer features a high quality Siemens PLC paired with a 12″ Siemens color HMI, enabling fully digitized parameter visualization and intuitive human-machine interaction.
☑ Key Advantage: One-touch factory parameter restoration. Protective devices for leakage and high temperature in both booster pump and diffusion pump systems.
Vacuum section
☑ Combining high speed pumping efficiency, excellent vacuum condition, with intelligent automation, the system utilizes high quality cryogenic traps and Siemens PLC technology to maintain optimized performance through continuous monitoring and control under any climate environment.
-

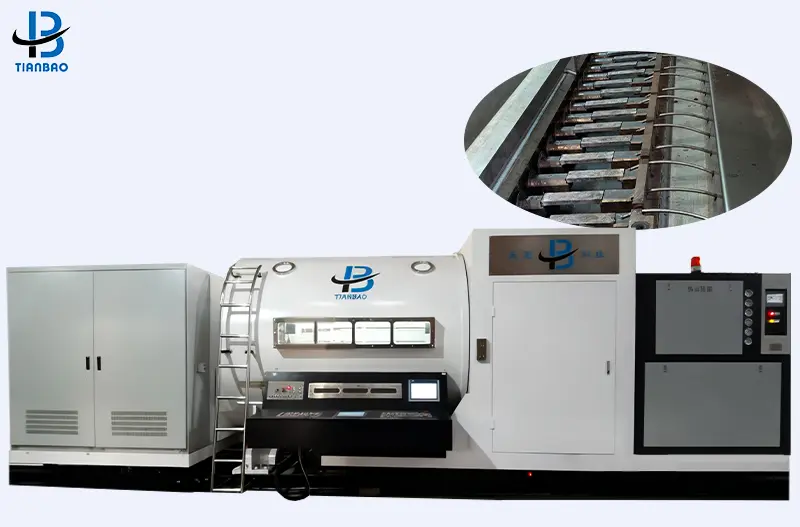

- Fully automatic Aluminum Paper Vacuum Metallized Machine equipment
-
- High-speed Aluminum Paper Vacuum Metallized Machine operating in factory
-
- Close-up of Aluminum Paper Vacuum Metallized Machine components and structure
-
- Industrial Aluminum Paper Vacuum Metallized Machine ready for coating process
-
- Precision Aluminum Paper Vacuum Metallized Machine for packaging production
-
- Aluminum Paper Vacuum Metallized Machine with advanced automation system
Model | TB-Y1100 | TB-Y1200 | TB-Y1700 | TB-Y1800 |
Web width(mm) | 1100 | 1200 | 1700 | 1800 |
Max. unwind dia.(mm) | Φ1200 | |||
Boats(pc) | 13 | 14 | 20 | 21 |
Winding peed(m/min) | 300-500m/mim | |||
Working power(Kw) | 150 | 160 | 220 | 230 |
Excellent for materials | 38g-150g | |||
* Note: The pictures and parameters of machine just for a reference and subject to the actual configuration.
